Product details

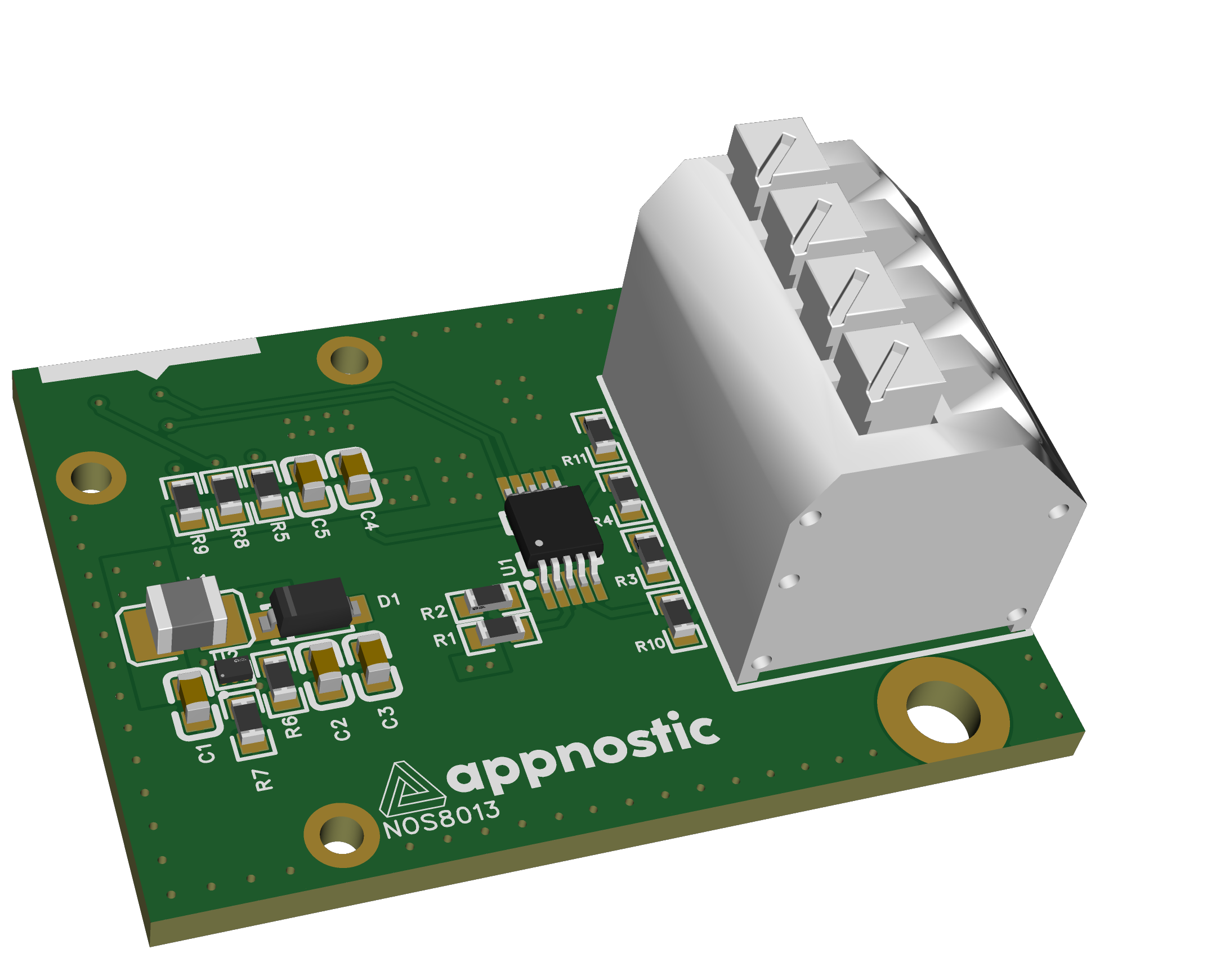

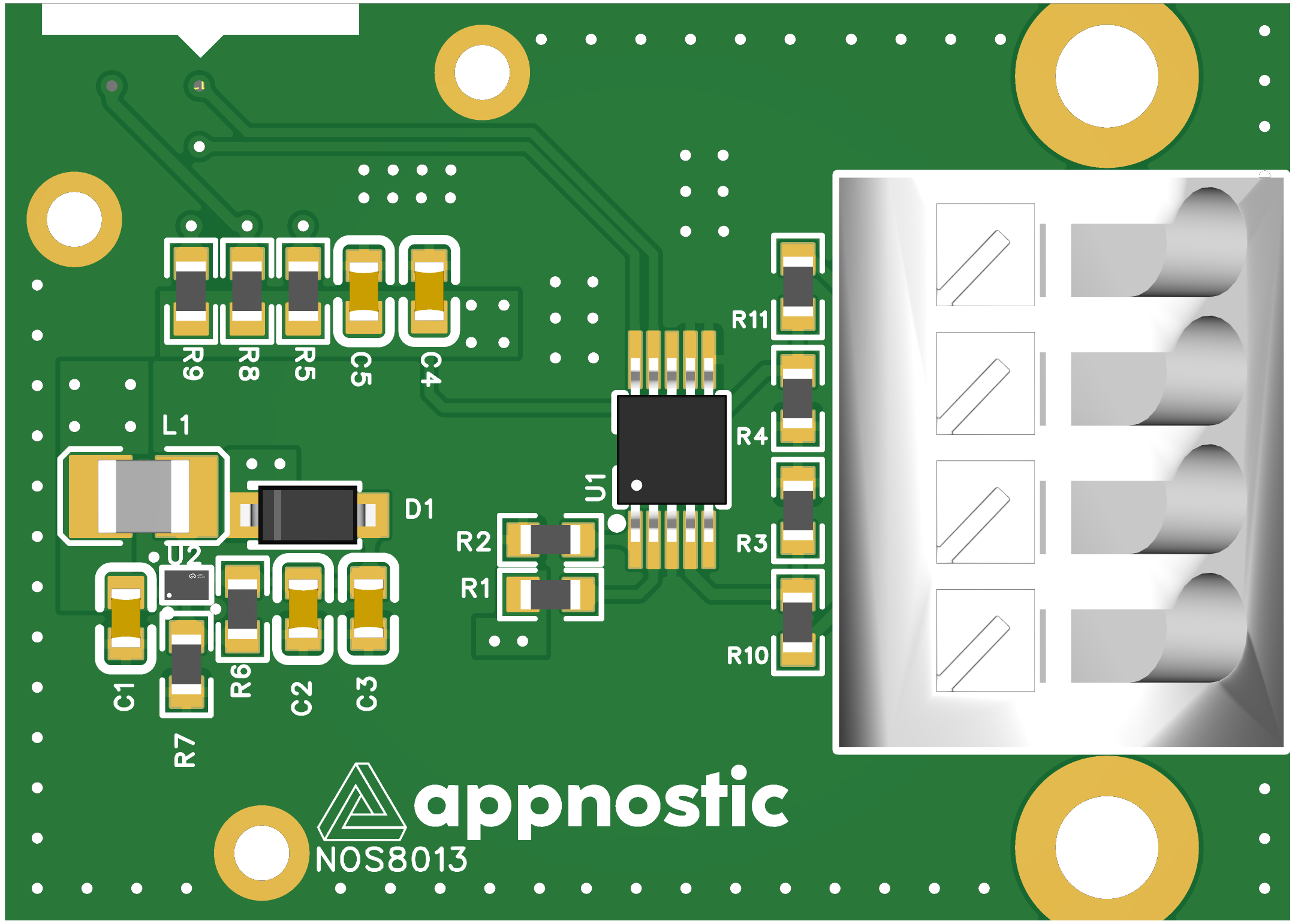

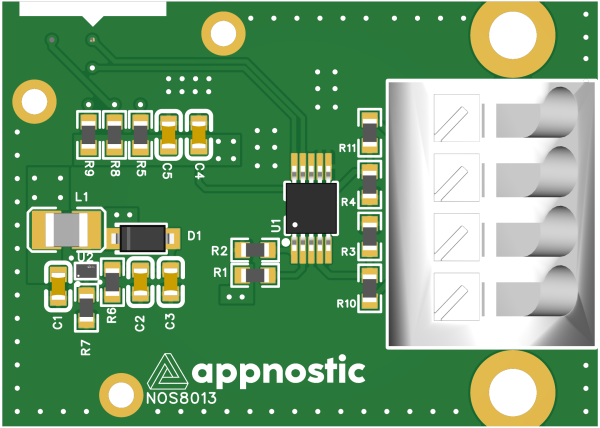

NOS8013 is a dual 4-20mA sensor supported by an I2C 16-bit analog-to-digital converter. By measuring the voltage drop across a (0.1% !)shunt resistor the current can be calculated in software for a highly-precise reading far surpassing regular ADCs built in to low-end microcontrollers due to its 62.5uV per LSB resolution.
Additionally, the module provides +12VDC output at up to 50mA to power sensors. Most 4-20mA sensors operate at a wide voltage range of +9VDC to +24VDC.
Features
Low current consumption: 150μA in continous-conversion mode
Programmable data rate: 8 SPS to 860 SPS
Highly accurate 0.1% shunt resistor
High resolution of 62.5µV per LSB
+12V@50mA to supply external sensors
Power controlled from MCU for maximum power savings
Operating temperature range: -40°C to +125°C
