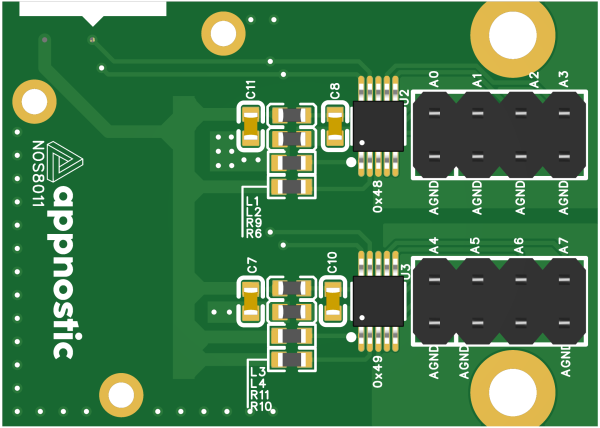

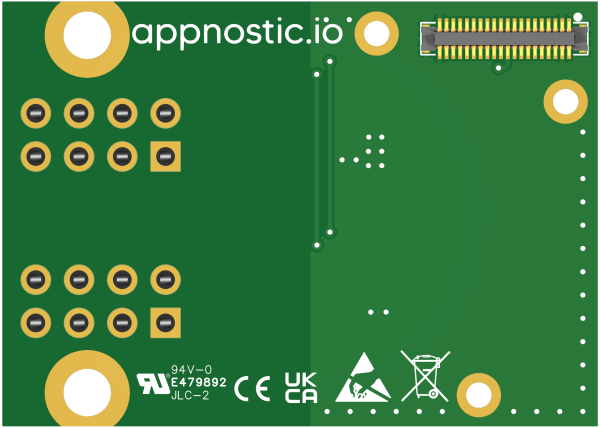

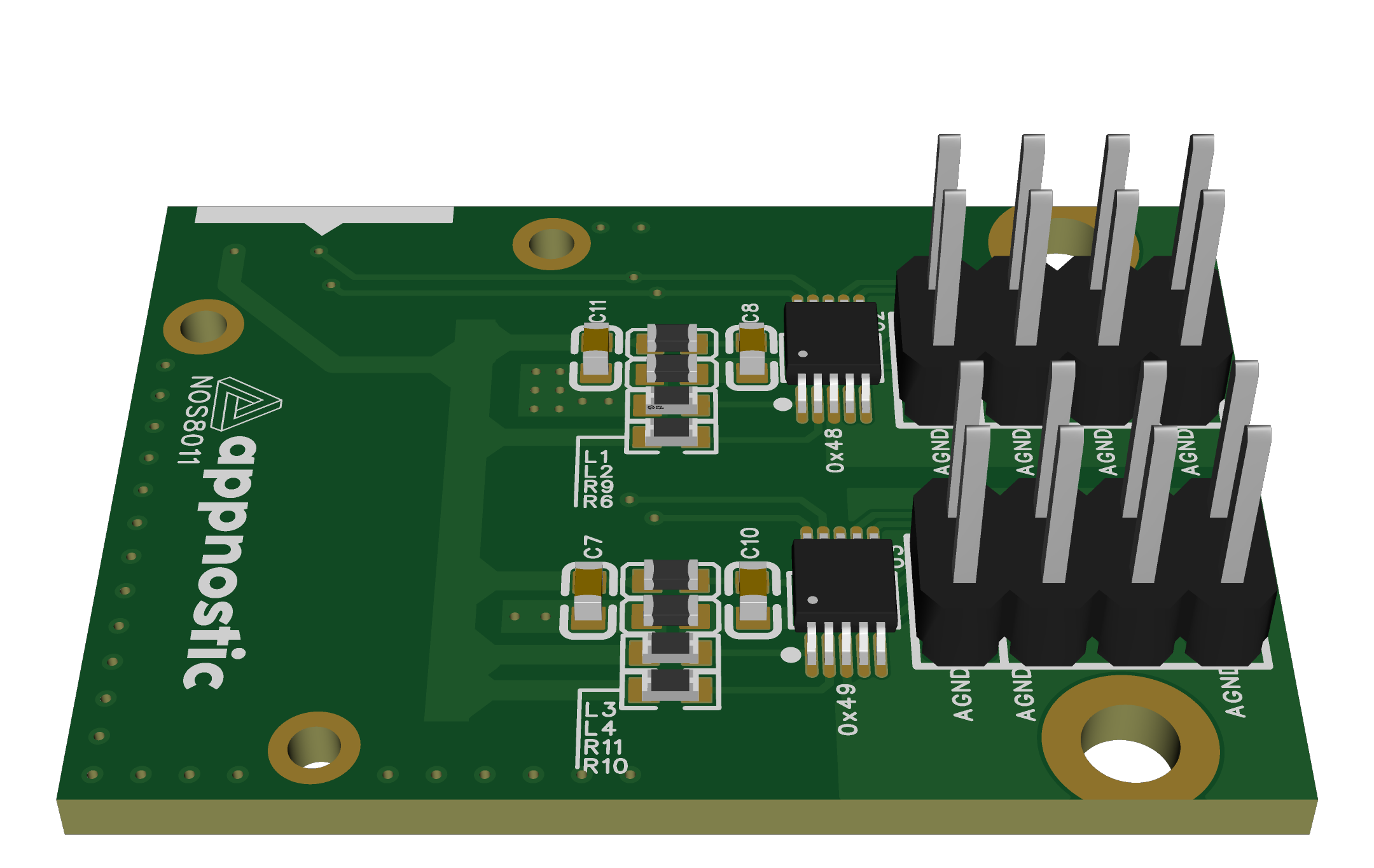

NOS8011 8-Channel 16-Bit ADC Interface

NOS8011 is an 8-channel 16-bit analog-to-digital converter. It achieves this by combining two I2C ADS1115 devices on separate addresses. Each ADC is fully isolated and contains separate digital and analog parts, including power.

Each ADC contains a programmable gain amplifier (PGA) a programmable comparator and a programmable data rate from 8 samples per second to 860 samples per second.

Features

• Low current consumption: 150μA in continuous-conversion mode
• Programmable gain amplifier
• Programmable data rate: 8 SPS to 860 SPS
• Single-cycle setting
• Eight single-ended or four differential inputs across both ADCs
• Operating temperature range: -40°C to +125°C
