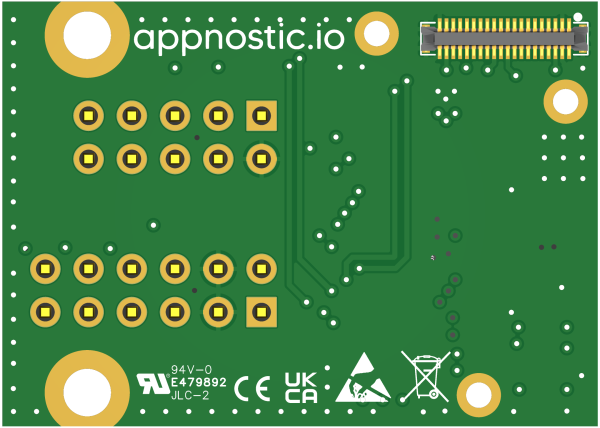

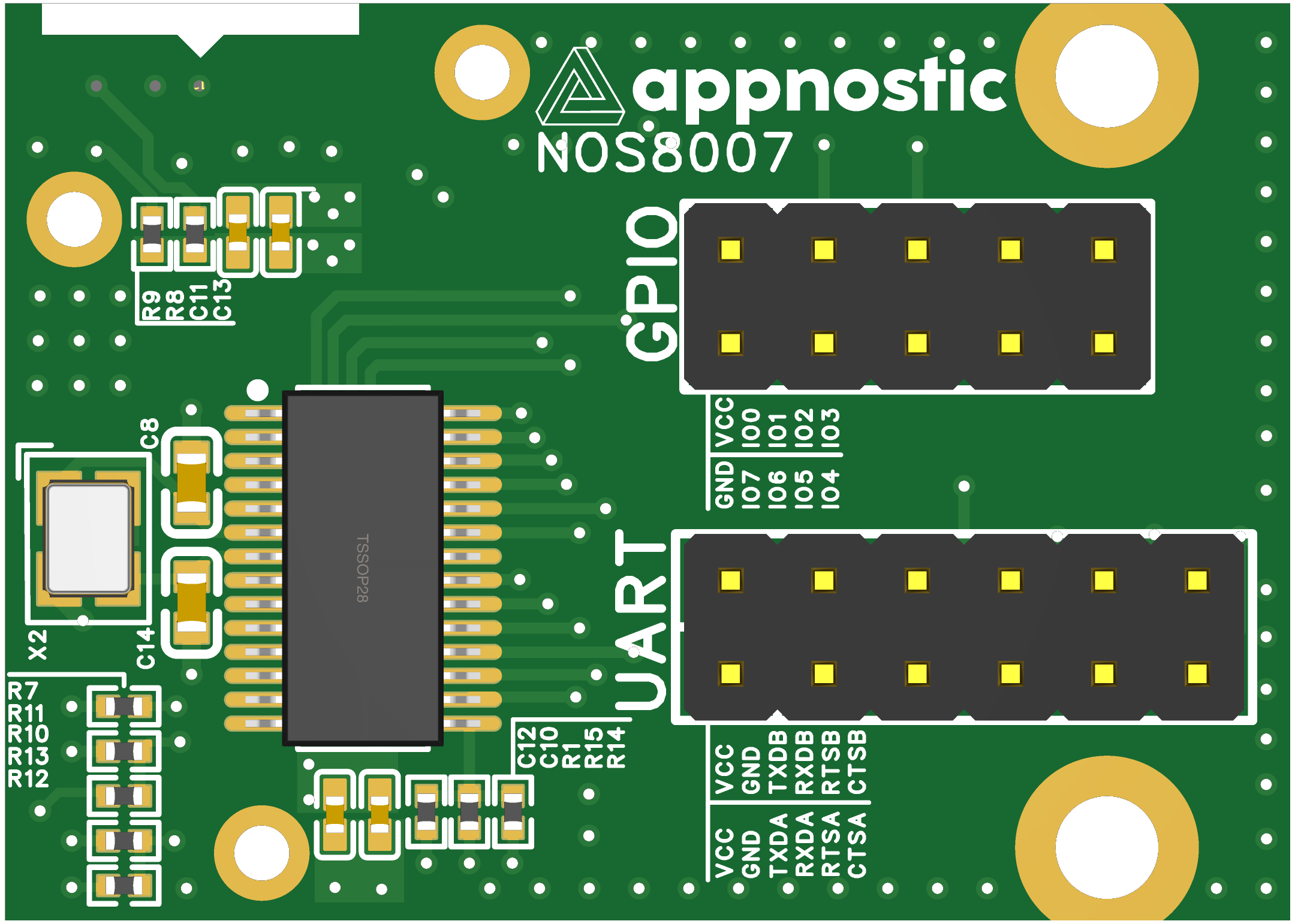

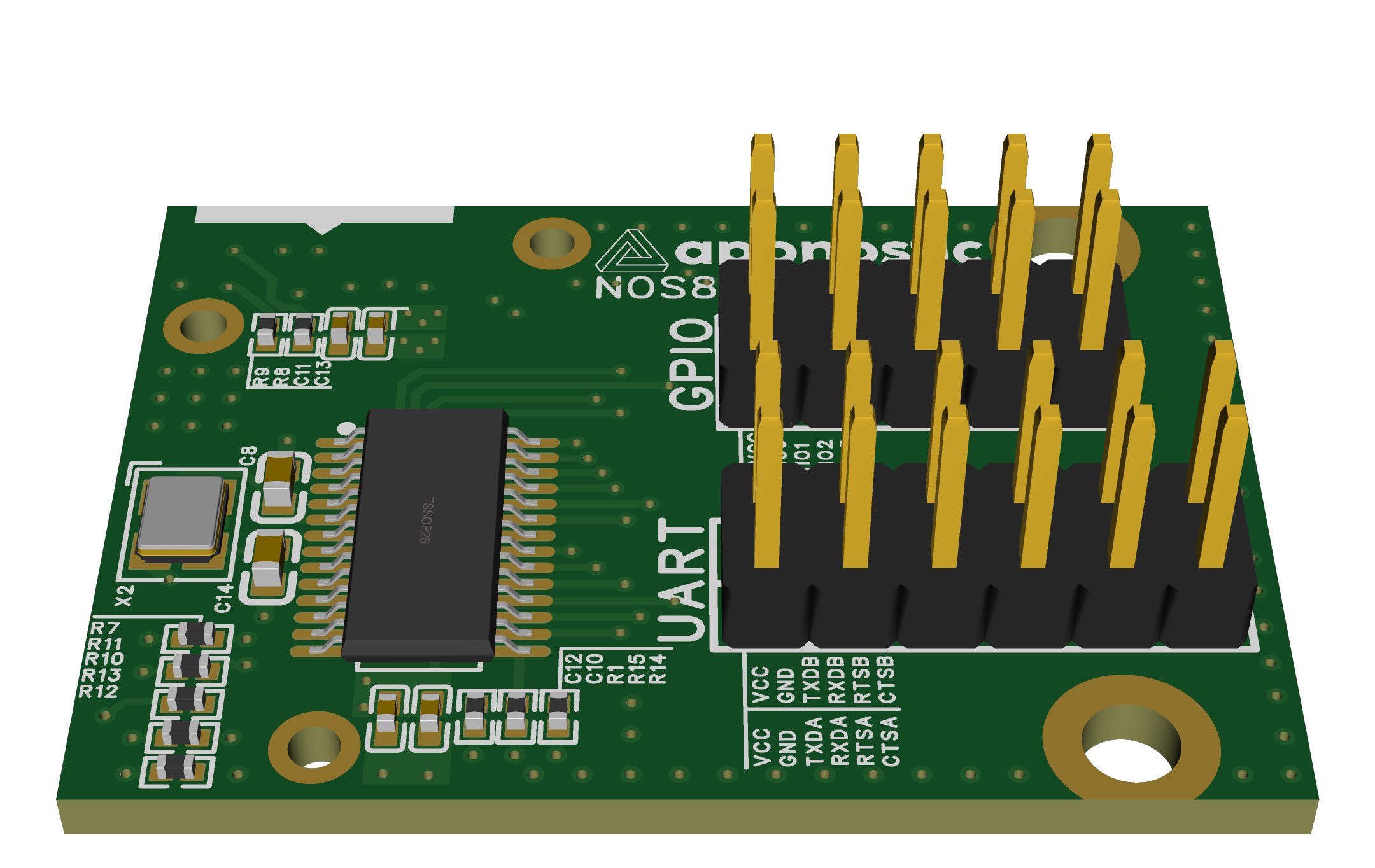

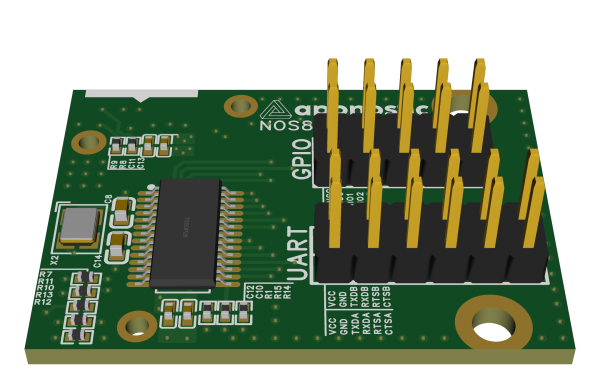

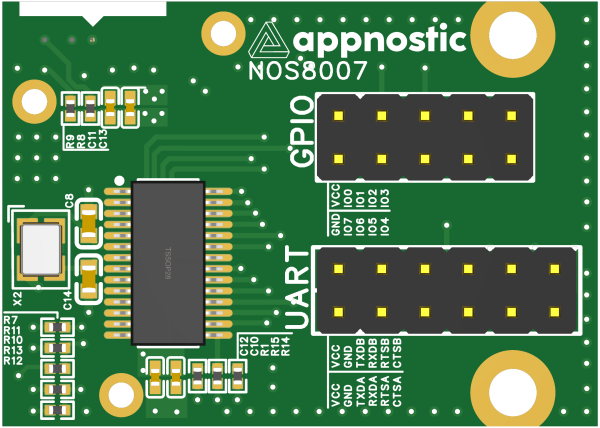

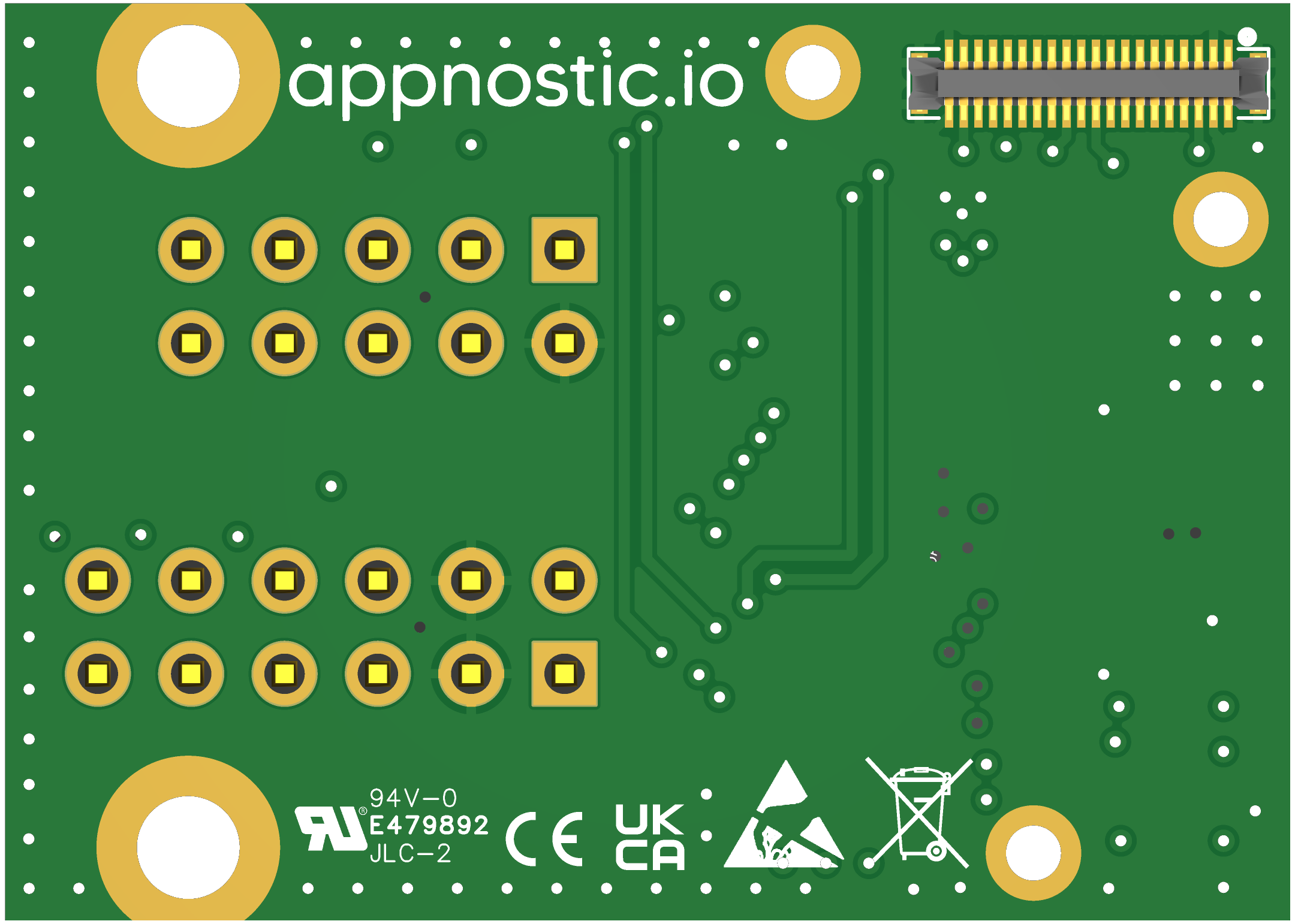

NOS8007 Dual UART Interface

NOS8007 is a dual UART interface supporting all common baud rates up to 115200 bps. This interface adds two UARTs to your project and is the perfect partner for MCUs with limited hardware UARTs or cases where the UART pins are used for other functions.

The interface also provides 8 additional GPIO pins accessible through separate header pins.

Features

• Dual full-duplex UART
• Industrial temperature range: -40 °C to +95 °C
• 64bytes FIFO (transmitter and receiver)
• Fully compatible with industrial standard 16C450 and equivalent
• Baud rates up to 115200 bps
• Auto hardware flow control using RTS/CTS
• Auto software flow control with programmable Xon/Xoff characters
• Single or double Xon/Xoff characters
• Programmable special character detection
• Fully programmable character formatting
• 5-bit, 6-bit, 7-bit or 8-bit character
• Even, odd, or no parity
• 1, 1 1⁄2, or 2 stop bits
• Line break generation and detection
• Internal Loopback mode
• Sleep current less than 30 uA
