Product details

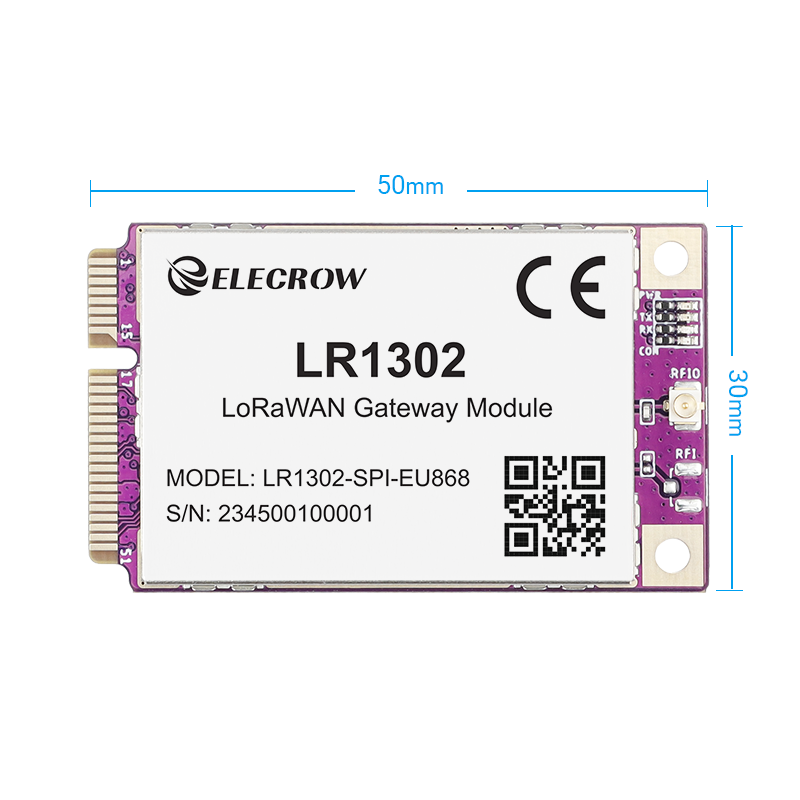

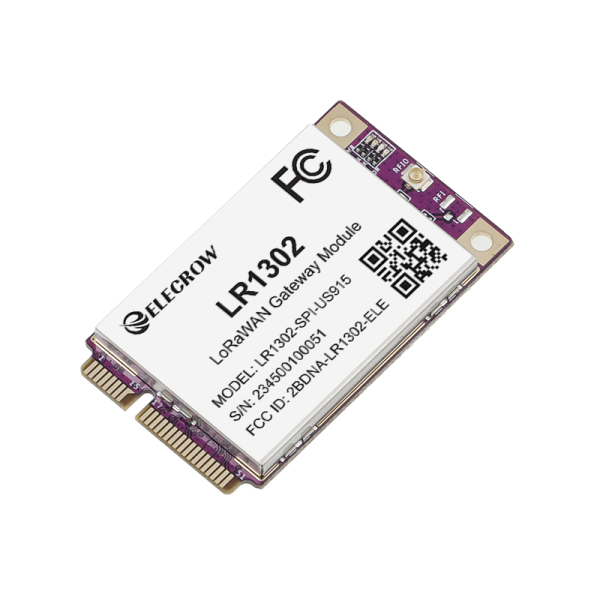

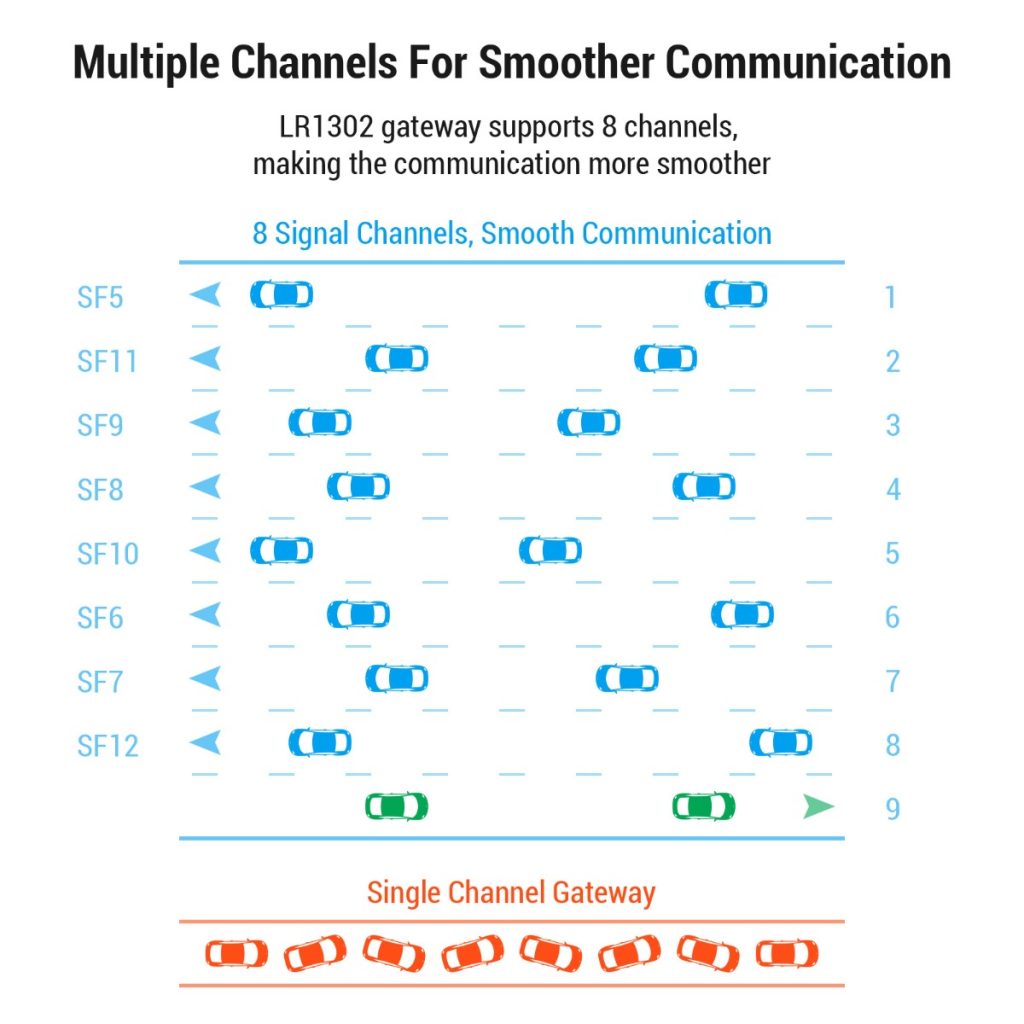

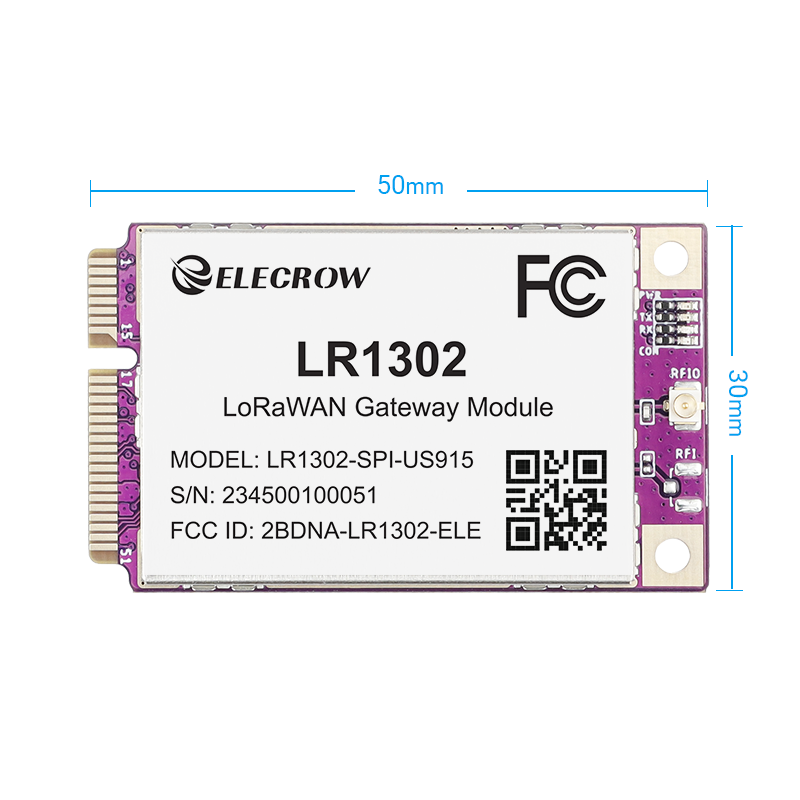

This LR1302 module is a new generation LoRaWAN® gateway module. It adopts a mini-PCIe form factor design and features low power consumption and high performance. Based on Semtech Network’s SX1302 LoRaWAN® baseband chip, the LR1302 gateway module provides gateway products with potential capacity for long-distance wireless transmission. Compared to the previous SX1301 and SX1308 LoRa chips, the SX1302 chip has higher sensitivity, lower power consumption and lower operating temperature. It supports 8-channel data transmission, improves communication efficiency and capacity, and supports the connection and data transmission of more devices.
It reserves two antenna interfaces, one for transmitting and receiving LoRa signals and one U.FL (IPEX) interface for independent transmission. It also has a metal shield to protect against external interference and provide a reliable communications environment.
The LR1302 LoRaWAN® gateway module is available in SPI and USB versions, covering the US915 and EU868 frequency bands, giving you a choice of LoRaWAN® frequency solutions, including EU868 and US915.
Designed specifically for the IoT space, the LR1302 is suitable for a variety of IoT applications. Whether used in smart cities, agriculture, industrial automation or other fields, the LR1302 module can provide reliable connections and efficient data transmission.

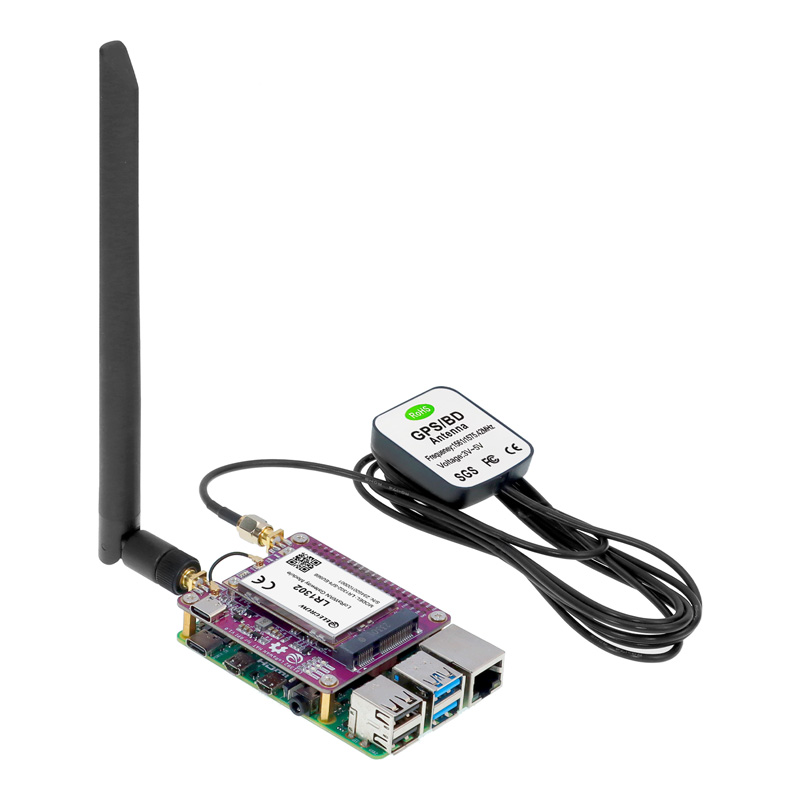

Application Example
