Product details
The LR1262 node module is an ultra-low-power remote transceiver module based on the STM32WLE5CC chip, specially designed for LoRa and LoRaWAN applications. The module provides an easy-to-use, small size and low-power solution ideal for long-range wireless data applications. Compliant with LoRaWAN 1.0.3 specification Class A, Class B and Class C specifications and can easily connect to various LoRaWAN server platforms. In addition, it also supports LoRa point-to-point (P2P) communication mode, which can help you quickly implement a customized long-range LoRa network.
Supports LoRaWAN on EU868 & US915 and supports all major global frequency bands making it ideal for wireless sensor networks and other IoT devices that require battery operation, low power consumption and long-range communications. It can provide reliable connections and efficient data transmission, whether used in smart cities, agriculture, industrial automation or other fields.
Feature
- High performance: Transmit power up to 22dBm@868/915MHz; the sensitivity of SF12 is -136.5dBm and the bandwidth is 125KHz;
- Ultra-low power consumption, 1.69 μA in sleep mode;
- Wireless connection: Embedded remote protocol, supports global remote frequency planning, 150 MHz to 960 MHz frequency range;

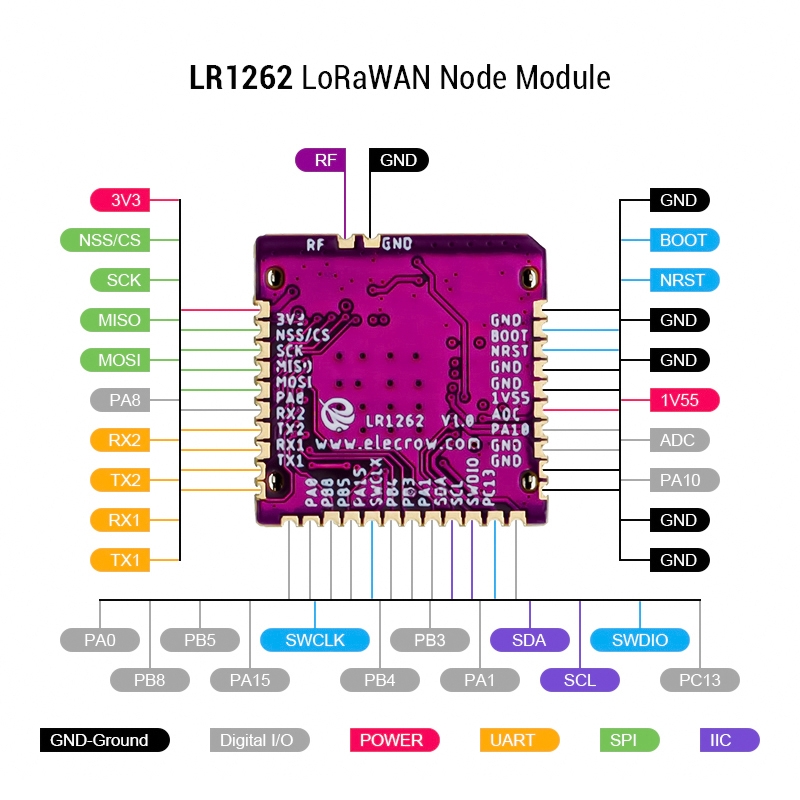

- Rich peripherals: The module is equipped with UART, I2C, ADC, SPI, GPIO and other interfaces, providing developers with great flexibility to expand peripherals.
- Easy to use: Built-in AT command firmware supports customized product development by using SDK;

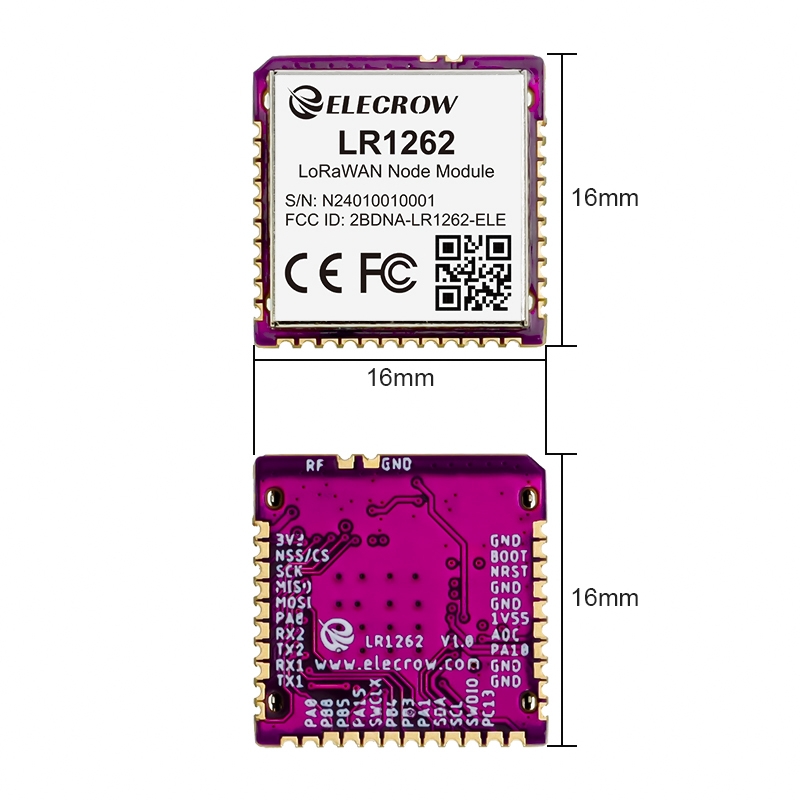

- Compact form factor: 16 x 16x 3.5 mm 32-pin clamp I/O port for PCB SMT mounting;
- FCC, CE certification
